S-4 Egg Breaker with a capacity of 26,000 eggs/hour
egg cracking machineDescription

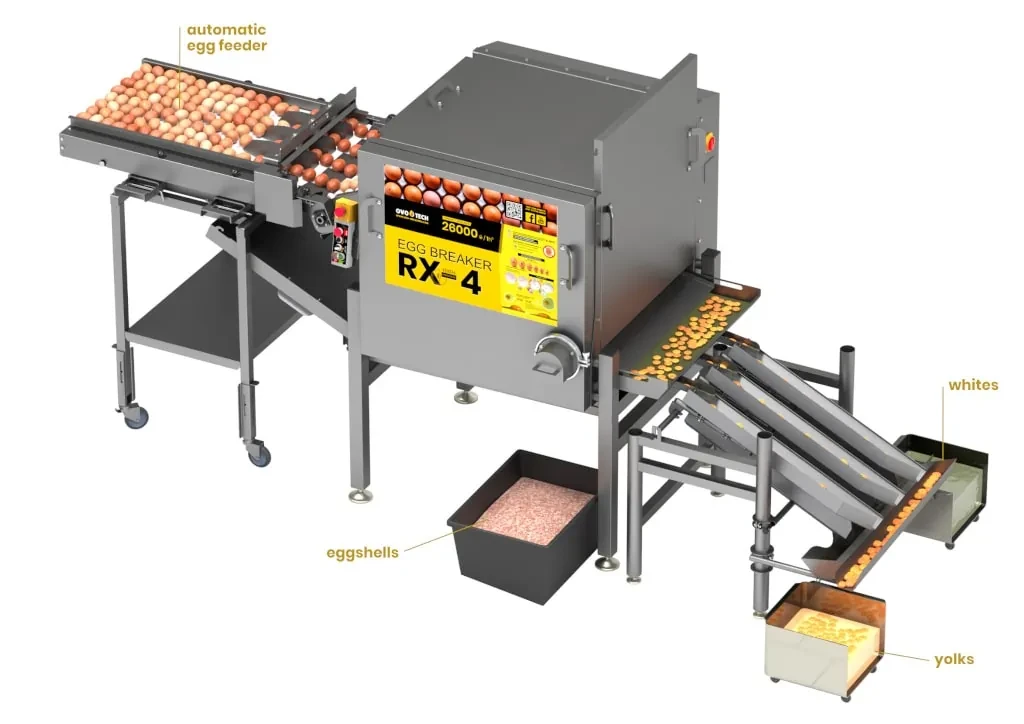

The RX-4 egg breaking machine uses a self-adjusting belt feeder with a specially designed pulley system to transport eggs to the breaking section. The machine's high performance is achieved thanks to the use of best-in-class innovative breaking mechanisms. The machine breaks eggshells using specially designed knives, mimicking the action of human hands. This hygienic method of breaking eggs is an innovation from OVO-TECH. The eggs then pass through a high-quality control tray. They then slide down a separator ramp where the yolk is separated from the white. The remaining eggshells after breaking are reduced by our comprehensive eggshell crushing machine, reducing their volume by 95%. After completion of the process, the machine can be cleaned using a built-in CIP system. Machine made of EN 1.4301 (AISI) stainless steel
Capacity: 26,000 eggs/hour
3-phase/N/PE 50/60 Hz
Dimensions: 4672 x 1310 x 1795 mm [184 x 51 x 71 in]
Small working area: 5700 x 2300 mm [224 x 91 in]
Weight: 475 kg [1047 lb]
Additional Information
Water connection and drainage are required to ensure efficient operation of the Clean-in-Place (CIP) system. If the egg quality is poor and the yolk is to be separated from the white, the eggs must be cooled to below 14°C (57°F) before crushing. It is integrated with the UZS system. We recommend a simple egg quality test. All parts of our machines that come into contact with eggs are made of EN 1.4301 (AISI 304) stainless steel.
