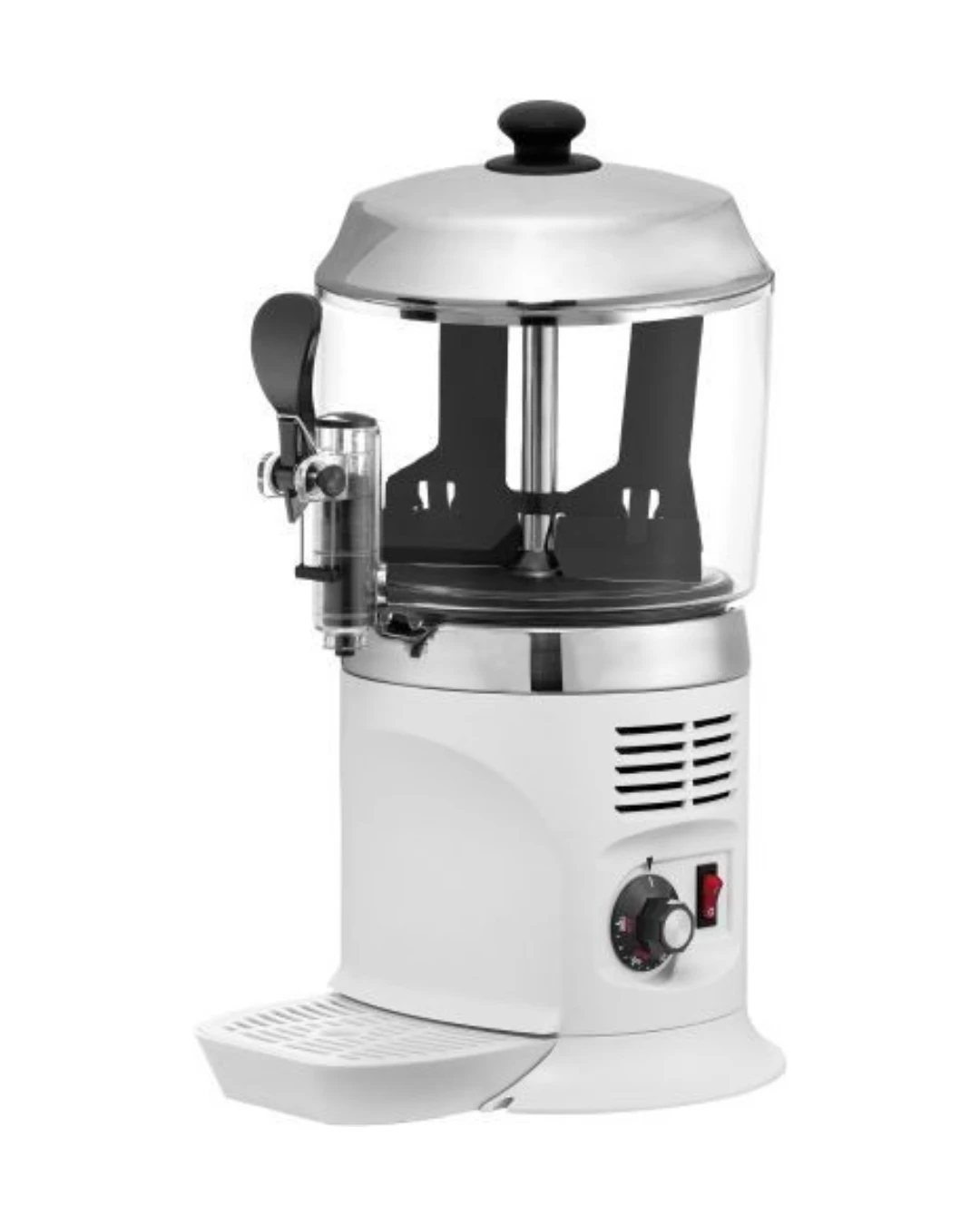

5LT Hot Chocolate Dispenser

Product Overview

The 5-Liter Hot Chocolate Dispenser is a professional-grade appliance designed for cafes, restaurants, and hotels serving high-quality hot beverages. This dispenser combines practical design with reliable performance to deliver hot chocolate, milk, tea, and other hot drinks at consistent temperature and homogeneous texture.​

Key Features

• Bain marie heating system ensures gradual and even heating without burning the beverage​
• Continuous stirring mechanism prevents clumping and clogging at the dispensing tap​
• Removable container and tap for easy and thorough cleaning​
• Stepless temperature adjustment for precise drink temperature control​
• Overheat protection to ensure safety and reliability​
• Integrated drip tray to collect any spills and maintain cleanliness​
• Level indicator and low water alert​
• Transparent container for monitoring drink level during service​

Technical Specifications

Control System: Adjustable thermostat with analog or digital control display​
Safety Features: Overload protection, secondary safety thermostat, and automatic stirring system​

Capacity & Dimensions

• Actual Capacity: 5 liters (sufficient for more than 20 cups)​
• Water Tank Capacity: 3.5 liters​
• External Dimensions: Approximately 290 × 410 × 460 mm (W × D × H)​
• Maximum Cup Height: 11 cm​
• Net Weight: 7.2 - 7.6 kg​

Power & Performance

• Voltage: 230V - 50Hz​
• Power Consumption: 1.0 - 1.1 kW​
• Temperature Range: 0 to +90°C​
• Hot Plate Temperature: Up to 120°C (adjustable)​
• Heating Time: 15-30 minutes (depending on desired temperature)​
• Stirring Speed: 14 RPM​

Features & Construction

• Material:
• Stirring Mechanism: Continuous rotating paddle system​
• Dispensing Tap: Removable with anti-clog design​
• Container: Transparent and easily removable​
• Temperature Control: Stepless adjustable thermostat​
• Power Cable Length: 2.5 meters​

Usage and Safety Instructions

• Place the device on a stable, heat-resistant, and level surface
• Fill the water tank to the Max mark before operation
• Fill the container with prepared chocolate or beverage
• Turn on the device and set the desired temperature
• Wait 15-30 minutes for the drink to reach the appropriate temperature
• Do not use the machine to melt solid chocolate or heat thick mixtures​
• Clean the container and tap after each use
• Do not leave product in the machine overnight​

Applications

Ideal for serving hot chocolate, hot milk, tea, mulled wine, and other hot beverages in cafes, restaurants, hotels, buffet stations, kiosks, and events.​
