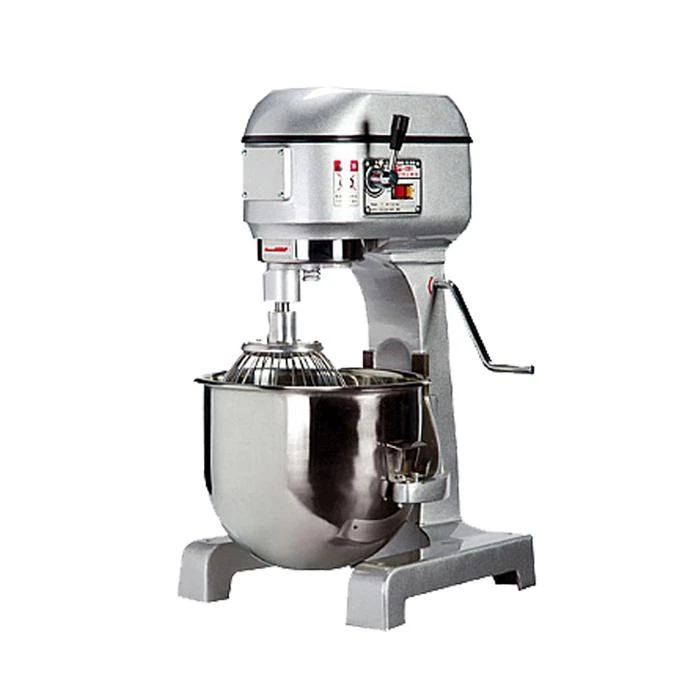

sparmixers 20Liter

PRICE

6,000

- +

1/2 h.p., grease packed ball bearing, air-cooled, 110V/60/1 (50Hz available)

Controls

Control Panel at side. Equipped with ON / OFF Switch is as standard.

Timer is optional.

Cord and Plug

6 ft. flexible three wire cord and ground prong

Transmission

Heat-treated, hardened alloy, precision milled gears operate with planetary action. Gears are packed in a long-lasting, high pressure grease. Planetary gears are driven by direct linkage to the motor drive shaft. This design yields high-torque mixing power.

Speeds(Agitator rpm)

Low Speed 105
Intermediate Speed 195
High Speed 354

Bowls and Agitators

Standard equipment includes a 20Qt. high quality stainless steel bowl, dough hook, flat beater, and whip. A sturdy hand lever on the body column raises and lowers the bowl as well as locking in place at the top and bottom positions.

Attachments

Standard is the No. 12 hub for powering a standard size vegetable slicer/cheese shredder and a standard size meat mincer/grinder.

Finish

Top (transmission cover): metallic bronze epoxy enamel
Bottom : metallic gray epoxy enamel

sparmixers 20Liter

Motor

1/2 h.p., grease packed ball bearing, air-cooled, 110V/60/1 (50Hz available)

Controls

Control Panel at side. Equipped with ON / OFF Switch is as standard.

Timer is optional.

Cord and Plug

6 ft. flexible three wire cord and ground prong

Transmission

Heat-treated, hardened alloy, precision milled gears operate with planetary action. Gears are packed in a long-lasting, high pressure grease. Planetary gears are driven by direct linkage to the motor drive shaft. This design yields high-torque mixing power.

Speeds(Agitator rpm)

Low Speed 105
Intermediate Speed 195
High Speed 354

Bowls and Agitators

Standard equipment includes a 20Qt. high quality stainless steel bowl, dough hook, flat beater, and whip. A sturdy hand lever on the body column raises and lowers the bowl as well as locking in place at the top and bottom positions.

Attachments

Standard is the No. 12 hub for powering a standard size vegetable slicer/cheese shredder and a standard size meat mincer/grinder.

Finish

Top (transmission cover): metallic bronze epoxy enamel
Bottom : metallic gray epoxy enamel

Shipping Information

N.W. 88kgs

G.W. 98kgs

Size: (L x W x H)

506mm x 523mm x 789mm

sparmixers 20Liter

Motor

1/2 h.p., grease packed ball bearing, air-cooled, 110V/60/1 (50Hz available)

Controls

Control Panel at side. Equipped with ON / OFF Switch is as standard.

Timer is optional.

Cord and Plug

6 ft. flexible three wire cord and ground prong

Transmission

Heat-treated, hardened alloy, precision milled gears operate with planetary action. Gears are packed in a long-lasting, high pressure grease. Planetary gears are driven by direct linkage to the motor drive shaft. This design yields high-torque mixing power.

Speeds(Agitator rpm)

Low Speed 105Intermediate Speed 195High Speed 354

Bowls and Agitators

Standard equipment includes a 20Qt. high quality stainless steel bowl, dough hook, flat beater, and whip. A sturdy hand lever on the body column raises and lowers the bowl as well as locking in place at the top and bottom positions.

Attachments

Standard is the No. 12 hub for powering a standard size vegetable slicer/cheese shredder and a standard size meat mincer/grinder.

Finish

Top (transmission cover): metallic bronze epoxy enamelBottom : metallic gray epoxy enamel

Shipping Information

N.W. 88kgs

G.W. 98kgs

Size: (L x W x H)

506mm x 523mm x 789mm

Low Speed 105
Intermediate Speed 195
High Speed 354

Top (transmission cover): metallic bronze epoxy enamel
Bottom : metallic gray epoxy enamel
